Refurbished Neslab Heat Exchangers provide reliable temperature control for a wide range of industrial and laboratory applications. Expertly remanufactured, inspected, and tested, these systems deliver dependable cooling performance while offering a cost-effective alternative to new equipment. Available with a variety of pump configurations to meet specific flow and pressure requirements, Neslab heat exchangers can be tailored to support your application needs.
Trillium can supply the following Neslab Heat Exchangers:
| Model | Temp Range | Cooling Capacity ~ 6 GPM (Watts) | Channels | Line Voltage | Electrical Supply |
|---|---|---|---|---|---|
| System II | +10 to +30 C | 22000 | 1 | 200-230V | 1 or 3 Ph. |
| System III | +10 to +30 C | 2000-70000 | 1 | 200-230V | 1 or 3 Ph. |
| System IV | +5 to +40 C | 65000-105000 | 1-4 | 200-230V | 1 or 3 Ph. |
| Steelhead 0 | +30 to +80 C | 8000 | 4 | 208-230V | 3 Ph. |
| Steelhead 1 | +30 to +130 C | 8000 | 4 | 208-230V | 3 Ph. |
Description
The Neslab Steelhead 0 is a heat exchanger designed specifically for Applied Materials Etch applications. The unit provides temperature control for a range of chamber types and includes a proprietary communication package to permit interface between itself and the tool.
The Steelhead 0 features brass plumbing, which was later changed to Stainless in the Steelhead 1.
In 2009 Trillium acquired the chiller and heat exchanger service business from Air Products, who had specialized in Neslab heat exchanger repair. Trillium now provides End Users worldwide support, repair service and spare parts, as well as Refurbished Neslab Steeheads.
The following specifications are provided for both the Steelhead 0 and Steelhead 1 comparison purposes.
| Specification | Steelhead 0 | Steelhead 1 |
|---|---|---|
| Temp Range | 30C to 80C | 30C to 130C |
| Flow Rate | 8.0 GPM | 8.0 GPM |
| Cooling Capacity at 5 GPM PCW | 8 kW | 8 kW |
| Heating Capacity | 6 kW | 6 kW |
| Available Voltage | 200-230V 3 Ph | 200-230V 3 Ph |
| Cooling Options | Water | Water |
Description
The Neslab Steelhead 1 is a heat exchanger designed specifically for Applied Materials Etch applications. The unit provides temperature control for a range of chamber types and includes a proprietary communication package to permit interface between itself and the tool.
The Steelhead 1 features stainless steel plumbing, which was an upgraded feature over the Steelhead 0.
In 2009 Trillium acquired the chiller and heat exchanger service business from Air Products, who had specialized in Neslab heat exchanger repair. Trillium now provides End Users worldwide support, repair service and spare parts, as well as Refurbished Neslab Steeheads.
The following specifications are provided for both the Steelhead 0 and Steelhead 1 comparison purposes.
| Specification | Steelhead 0 | Steelhead 1 |
|---|---|---|
| Temp Range | 30C to 80C | 30C to 130C |
| Flow Rate | 8.0 GPM | 8.0 GPM |
| Cooling Capacity at 5 GPM PCW | 8 kW | 8 kW |
| Heating Capacity | 6 kW | 6 kW |
| Available Voltage | 200-230V 3 Ph | 200-230V 3 Ph |
| Cooling Options | Water | Water |
Description
The Neslab System I is a water to water heat exchanger designed for general temperature control applications.The unit provides temperature control within .1 degrees Celsius of setpoint.
In 2009 Trillium acquired the chiller and heat exchanger service business from Air Products, who had specialized in Neslab heat exchanger repair. Trillium now provides End Users worldwide support, repair service and spare parts, as well as Refurbished Neslab System Is.
The following specifications are provided for Systems I-IV for comparison purposes.
| Specification | System I | System II | System III | System IV |
|---|---|---|---|---|
| Temp Range | 5C to 35C | 5C to 35C | 5C to 35C | 5C to 35C |
| Flow Rate | 5.0 GPM | 8.0 GPM | 10-12 GPM | 47 GPM |
| Cooling Capacity* | 16 kW | 29 kW | 70 kW | 110 kW |
| Available Voltage | 115-230V 1 Ph | 115-230V 1 Ph | 200-230V 1 or 3 Ph | 200-230V 3 Ph |
| Cooling Options | Water | Water | Water | Water |
*With 5 GPM PCW
Description
The Neslab System II is a water to water heat exchanger designed for general temperature control applications.The unit provides temperature control within .1 degrees Celsius of setpoint.
In 2009 Trillium acquired the chiller and heat exchanger service business from Air Products, who had specialized in Neslab heat exchanger repair. Trillium now provides End Users worldwide support, repair service and spare parts, as well as Refurbished Neslab System Is.
The following specifications are provided for Systems I-IV for comparison purposes.
| Specification | System I | System II | System III | System IV |
|---|---|---|---|---|
| Temp Range | 5C to 35C | 5C to 35C | 5C to 35C | 5C to 35C |
| Flow Rate | 5.0 GPM | 8.0 GPM | 10-12 GPM | 47 GPM |
| Cooling Capacity* | 16 kW | 29 kW | 70 kW | 110 kW |
| Available Voltage | 115-230V 1 Ph | 115-230V 1 Ph | 200-230V 1 or 3 Ph | 200-230V 3 Ph |
| Cooling Options | Water | Water | Water | Water |
*With 5 GPM PCW
Description

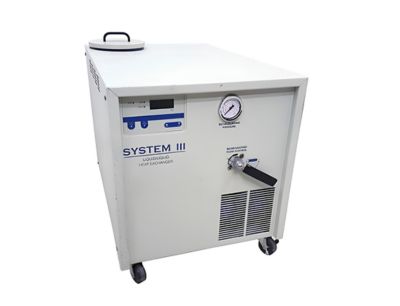

The Neslab System III is a water to water heat exchanger designed for general temperature control applications.The unit provides temperature control within .1 degrees Celsius of setpoint.
In 2009 Trillium acquired the chiller and heat exchanger service business from Air Products, who had specialized in Neslab heat exchanger repair. Trillium now provides End Users worldwide support, repair service and spare parts, as well as Refurbished Neslab System Is.
The following specifications are provided for Systems I-IV for comparison purposes.
| Specification | System I | System II | System III | System IV |
|---|---|---|---|---|
| Temp Range | 5C to 35C | 5C to 35C | 5C to 35C | 5C to 35C |
| Flow Rate | 5.0 GPM | 8.0 GPM | 10-12 GPM | 47 GPM |
| Cooling Capacity* | 16 kW | 29 kW | 70 kW | 110 kW |
| Available Voltage | 115-230V 1 Ph | 115-230V 1 Ph | 200-230V 1 or 3 Ph | 200-230V 3 Ph |
| Cooling Options | Water | Water | Water | Water |
*With 5 GPM PCW
Description
The Neslab System IV is a water to water heat exchanger designed for general temperature control applications. The unit provides temperature control within .1 degrees Celsius of setpoint.
In 2009 Trillium acquired the chiller and heat exchanger service business from Air Products, who had specialized in Neslab heat exchanger repair. Trillium now provides End Users worldwide support, repair service and spare parts, as well as Refurbished Neslab System Is.
The following specifications are provided for Systems I-IV for comparison purposes.
| Specification | System I | System II | System III | System IV |
|---|---|---|---|---|
| Temp Range | 5C to 35C | 5C to 35C | 5C to 35C | 5C to 35C |
| Flow Rate | 5.0 GPM | 8.0 GPM | 10-12 GPM | 47 GPM |
| Cooling Capacity* | 16 kW | 29 kW | 70 kW | 110 kW |
| Available Voltage | 115-230V 1 Ph | 115-230V 1 Ph | 200-230V 1 or 3 Ph | 200-230V 3 Ph |
| Cooling Options | Water | Water | Water | Water |
*With 5 GPM PCW
