Refurbished Stokes Vacuum Pump Packages provide the proven performance and durability that have made Stokes a trusted name in the vacuum industry for decades. Expertly rebuilt, inspected, and tested, these complete vacuum solutions deliver reliable performance for various demanding processes while offering a cost-effective alternative to new equipment.
Description

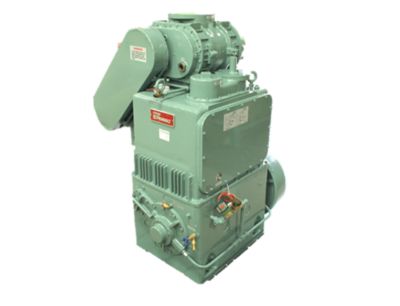

The Stokes 148MBX package consists of a Stokes 148 rotary piston pump with a Stokes 306-402 booster pump. This pump package is a durable, air cooled solution when rapid pumping of small to medium sized chambers is required. Trillium provides a full range of support options for your Stokes 148MBX including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 148MBX | 900-148-MBX LV | 900-148-MBX HV |
Note: Other motor voltages available upon request.
All 148MBX Series pumps share the same data below.
| Pumping Speed | 245 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 2 HP / 2 HP |
| Dimensions (Inches) | 39″H x 29″L x 24″W |
| Weight | 620 lbs. |
| Oil Capacity | 2.5 Gallons / 1.75 Pts. |
Description
The Stokes 149MB package consists of a Stokes 149 rotary piston pump with a Stokes 306-402 booster pump. This pump package is a durable, air cooled solution when rapid pumping of small to medium sized chambers is required. Trillium provides a full range of support options for your Stokes 149MB including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 149MB | 900-149-MB LV | 900-149-MB HV |
Note: Other motor voltages available upon request.
All 149MB Series pumps share the same data below.
| Pumping Speed | 245 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 3 HP / 2 HP |
| Dimensions (Inches) | 39″H x 33″L x 24″W |
| Weight | 815 lbs. |
| Oil Capacity | 3 Gallons / 1.75 Pts. |
Description
The Stokes 149MBX package consists of a Stokes 149 rotary piston pump with a Stokes 310-402 booster pump. This pump package is a durable, air cooled solution when rapid pumping of small to medium sized chambers is required. Trillium provides a full range of support options for your Stokes 149MBX including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 149MBX | 900-149-MBX LV | 900-149-MBX HV |
Note: Other motor voltages available upon request.
All 149MBX Series pumps share the same data below. Download the full manual below.
| Pumping Speed | 400 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 3 HP / 2 HP |
| Dimensions (Inches) | 39″H x 33″L x 24″W |
| Weight | 830 lbs. |
| Oil Capacity | 3 Gallons / 1.75 Pts. |
Description
The Stokes 212MB package consists of a Stokes 212H-11 or 212J-14 rotary piston pump with a Stokes 306-401 booster pump. This pump package is a durable, air cooled solution, where rapid pumping of medium to large sized chambers is required. Trillium provides a full range of support options for your Stokes 212MB including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 212MB | 900-212-MB LV | 900-212-MB HV |
Note: Other motor voltages available upon request.
All 212MB Series pumps share the same data below.
| Pumping Speed | 245 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 7.5 HP / 2 HP |
| Dimensions (Inches) | 44″H x 30″L x 27″W |
| Weight | 1250 lbs. |
| Oil Capacity | 4 Gallons / 1.75 Pts. |
Description
The Stokes 212MBX package consists of a Stokes 212H-11 or 212J-14 rotary piston pump with a Stokes 310-401 booster pump. This pump package is a durable, air cooled solution when rapid pumping of medium to large sized chambers is required. Trillium provides a full range of support options for your Stokes 212MBX including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 212MBX | 900-212-MBX LV | 900-212-MBX HV |
Note: Other motor voltages available upon request.
All 212MBX Series pumps share the same data below.
| Pumping Speed | 400 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 7.5 HP / 2 HP |
| Dimensions (Inches) | 44″H x 30″L x 27″W |
| Weight | 1300 lbs. |
| Oil Capacity | 4 Gallons / 1.75 Pts. |
Description
The Stokes 412MB package consists of a Stokes 412H-11 or 412J-14 rotary piston pump with a Stokes 310-401 booster pump. This pump package is a durable solution when rapid pumping of medium to large sized chambers is required. Trillium provides a full range of support options for your Stokes 412MB including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 412MB | 900-412-MB LV | 900-412-MB HV |
Note: Other motor voltages available upon request.
All 412MB Series pumps share the same data below.
| Pumping Speed | 400 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 10 HP / 2 HP |
| Dimensions (Inches) | 44″H x 30″L x 27″W |
| Weight | 2100 lbs. |
| Oil Capacity | 12 Gallons / 1.75 Pts. |
Description
The Stokes 412MBX package consists of a Stokes 412H-11 or 412J-14 rotary piston pump with a Stokes 607-401 booster pump. This pump package is a durable solution when rapid pumping of large sized chambers is required. Trillium provides a full range of support options for your Stokes 412MBX including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 412MBX | 900-412-MBX LV | 900-412-MBX HV |
Note: Other motor voltages available upon request.
All 412MBX Series pumps share the same data below.
| Pumping Speed | 612 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 10 HP / 20 HP |
| Dimensions (Inches) | 52″H x 42″L x 56″W |
| Weight | 2650 lbs. |
| Oil Capacity | 12 Gallons / 9.25 Pts. |
Description
The Stokes 612MB package consists of a specially modified Stokes 412H-11 or 412J-14 rotary piston pump with a Stokes 607-402 booster pump. This pump package is a novel solution for the rapid and frequent pump down of medium to large vacuum chambers from atmospheric pressure. It has historically been a workhorse in a number of industries including vacuum metallurgy and glass coating. Trillium provides a full range of support options for your Stokes 612MB including service and replacement parts.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 612MB | 900-612-MB LV | 900-612-MB HV |
Note: Other motor voltages available upon request.
All 612MB Series pumps share the same data below.
| Pumping Speed | 612 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 20 HP |
| Dimensions (Inches) | 57″H x 47″L x 41″W |
| Weight | 3200 lbs. |
| Oil Capacity | 12 Gallons / 8 Pts. |
Description
The Stokes 1721 is a pump package that is comprised of the Stokes 212H-11 or 212J-14 mechanical pump with the Stokes 615-1 booster pump. In this configuration, the entire package is mounted on standard sized skid, with the blower mounted on a frame, driven by motor and pulley positioned below it. This package is well regarded as the workhorse of many industries, including Vacuum Heat Treating, Sintering, Vacuum Arc and Induction Melting, as well as many others. This pump package is well suited for mid to large sized vacuum chambers and vacuum systems.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 1721 | 900170061LV | 900170061HV |
Note: Other motor voltages available upon request.
All 1721 pump packages share the same data below.
| Pumping Speed | 1300 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 7.5 HP / 10 HP |
| Dimensions (Inches) | 51″H x 54″L x 37″W |
| Weight | 2700 lbs. |
| Oil Capacity | 4 Gallons / 2 Qts. |
Description
The Stokes 1722 is a pump package that is comprised of the Stokes 412H-11 or 412J-14 mechanical pump with the Stokes 615-1 booster pump. In this configuration, the entire package is mounted on standard sized skid, with the blower mounted on a frame, driven by motor and pulley positioned below it. This package is well regarded as the workhorse of many industries, including Vacuum Heat Treating, Sintering, Vacuum Arc and Induction Melting, as well as many others. This pump package is well suited for large vacuum chambers and vacuum systems.
| Model | 208V 60Hz PN | 460V 60Hz PN |
|---|---|---|
| 1722 | 900170062LV | 900170062HV |
Note: Other motor voltages available upon request.
All 1722 pump packages share the same data below.
| Pumping Speed | 1300 cfm |
| Ultimate Pressure without Gas Ballast | 10 mTorr |
| Power | 10 HP / 10 HP |
| Dimensions (Inches) | 51″H x 57″L x 42″W |
| Weight | 3500 lbs. |
| Oil Capacity | 12 Gallons / 2 Qts. |
