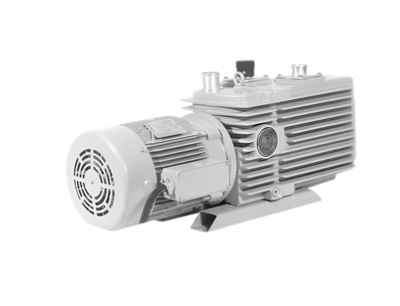

Refurbished Leybold Rotary Vane Pumps

The Leybold D90A and D90AC series pumps are the first generation of rotary vane pumps from Leybold. These pumps are still widely used and remain supportable. Both types are driven by 3 phase electric motors. The D90 size pump is mechanically identical to a D60, with simply a faster spinning motor.

For non-corrosive applications, the D90A is a robust pump, offering excellent performance. For corrosive duty installations, the D90AC features more chemically resistant seals and O-rings to prevent premature leaks and failure.

The Leybold D8B and D8BCS series pumps are the much-improved second generation of rotary vane pumps from Leybold. Unlike the Trivac A Series which was constructed with the shaft seal riding directly on the shaft, the B series features a shaft sleeve design that reduces repair costs.

For non-corrosive applications, the D8B is a robust pump offering excellent performance. For corrosive duty installations, the D8BCS features more chemically resistant machined part and seals, as well as a full range of accessories to enhance operation including:

• Automatic Recirculation Systems: Capture exhaust oil mist and recirculates in to the pump.
• Chemical Filtration System: Provide onboard filtration of oil for particles, acids and other harmful materials.
• Inert Gas System: Provides and control a Nitrogen purge to the pumps swept volume.
• Electronic Indicator System: Supplies the end user with various indications and warnings.

The Leybold D25B and D25BCS series pumps are the much-improved second generation of rotary vane pumps from Leybold. Unlike the Trivac A Series which was constructed with the shaft seal riding directly on the shaft, the B series features a shaft sleeve design that reduces repair costs.

For non-corrosive applications, the D25B is a robust pump offering excellent performance. For corrosive duty installations, the D25BCS features more chemically resistant machined part and seals, as well as a full range of accessories to enhance operation including:

• Automatic Recirculation Systems: Capture exhaust oil mist and recirculates in to the pump.
• Chemical Filtration System: Provide onboard filtration of oil for particles, acids and other harmful materials.
• Inert Gas System: Provides and control a Nitrogen purge to the pumps swept volume.
• Electronic Indicator System: Supplies the end user with various indications and warnings.

The Leybold D40B and D40BCS series pumps are the much-improved second generation of rotary vane pumps from Leybold. Unlike the Trivac A Series which was constructed with the shaft seal riding directly on the shaft, the B series features a shaft sleeve design that reduces repair costs.

For non-corrosive applications, the D40B is a robust pump offering excellent performance. For corrosive duty installations, the D40BCS features more chemically resistant machined part and seals, as well as a full range of accessories to enhance operation including:

• Automatic Recirculation Systems: Capture exhaust oil mist and recirculates in to the pump.
• Chemical Filtration System: Provide onboard filtration of oil for particles, acids and other harmful materials.
• Inert Gas System: Provides and control a Nitrogen purge to the pumps swept volume.
• Electronic Indicator System: Supplies the end user with various indications and warnings.

The Leybold D65B and D65BCS series pumps are the much-improved second generation of rotary vane pumps from Leybold. Unlike the Trivac A Series which was constructed with the shaft seal riding directly on the shaft, the B series features a shaft sleeve design that reduces repair costs.

For non-corrosive applications, the D65B is a robust pump offering excellent performance. For corrosive duty installations, the D65BCS features more chemically resistant machined part and seals, as well as a full range of accessories to enhance operation including:

• Automatic Recirculation Systems: Capture exhaust oil mist and recirculates in to the pump.
• Chemical Filtration System: Provide onboard filtration of oil for particles, acids and other harmful materials.
• Inert Gas System: Provides and control a Nitrogen purge to the pumps swept volume.
• Electronic Indicator System: Supplies the end user with various indications and warnings.

The Leybold SV65 series pumps are tried and true single compression stage units used in a wide range of applications including house vacuum, cryogenic cylinder evacuation and many more.

The SV65 features on board oil filtration, injection and exhaust demisting which all serve to keep the pump well lubricated with clean oil, and without the typical issue of oil mist blowing out of the exhaust. The SV65 provides excellent pumping performance from atmospheric pressure to 1 Torr.

Trillium offers Refurbished SV65s and SV65Bs, as well as world-class repair service, oil and spare parts.

The Leybold SV100 series pumps are tried and true single compression stage units used in a wide range of applications including house vacuum, cryogenic cylinder evacuation and many more.

The SV100 features on board oil filtration, injection and exhaust demisting which all serve to keep the pump well lubricated with clean oil, and without the typical issue of oil mist blowing out of the exhaust. The SV100 provides excellent pumping performance from atmospheric pressure to 1 Torr.

Trillium offers Refurbished SV100s and SV100Bs, as well as world-class repair service, oil and spare parts.

The Leybold SV200 series pumps are tried and true single compression stage units used in a wide range of applications including house vacuum, cryogenic cylinder evacuation and many more.

The SV200 features on board oil filtration, injection and exhaust demisting which all serve to keep the pump well lubricated with clean oil, and without the typical issue of oil mist blowing out of the exhaust. The SV200 provides excellent pumping performance from atmospheric pressure to 1 Torr.

Trillium offers Refurbished SV200s, as well as world-class repair service, oil and spare parts.

The Leybold SV300 series pumps are tried and true single compression stage units used in a wide range of applications including house vacuum, transformer drying and many more.

The SV300 features on board oil filtration, injection and exhaust demisting which all serve to keep the pump well lubricated with clean oil, and without the typical issue of oil mist blowing out of the exhaust. The SV300 provides excellent pumping performance from atmospheric pressure to 1 Torr.

Trillium offers Refurbished SV300s, as well as world-class repair service, oil and spare parts.

The Leybold SV630 series pumps are tried and true single compression stage units used in a wide range of applications from house vacuum to optical coating.

The SV630 features on board oil filtration, injection and exhaust demisting which all serve to keep the pump well lubricated with clean oil, and without the typical issue of oil mist blowing out of the exhaust. The SV630 provides excellent pumping performance from atmospheric pressure to 1 Torr.

Trillium offers Refurbished SV630s, as well as world-class repair service, oil and spare parts.

The Leybold SV630 is offered in both air cooled (SV630B) and water cooled (SV630BF) configurations and each has the following specifications.
