description
Refurbished Kinney Rotary Piston Pumps provide the proven performance and durability that have made Kinney a trusted name in the vacuum industry for decades. Expertly rebuilt, inspected, and tested, these pumps deliver reliable vacuum performance for various demanding processes while offering a cost-effective alternative to new equipment.
Description

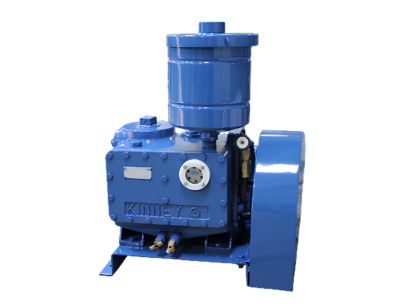

The KC-15 is an oil sealed rotary piston pump. All KC-15 pumps are belt driven and are mounted on a steel base ready for installation. The KC-15 is most widely used in the packaged gas industry and can be easily converted for oxygen service. The KC-15 is also popular in brake service applications.
All KC-15 pumps share the same data below. Download the full manual below.
| Pumping Speed | 15 cfm |
| Ultimate Pressure without Gas Ballast | 20 mTorr |
| Power | 1 HP / 10 HP |
| Dimensions (Inches) | 26″H x 23″L x 19″W |
| Weight | 210 lbs. |
| Oil Capacity | 3 Qts. |
